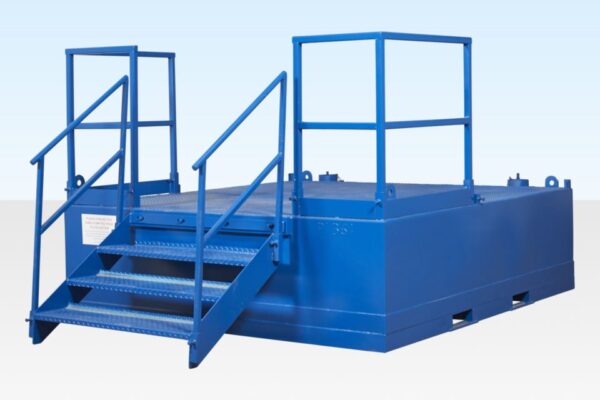

Double Mains Toilet Waste Tank | Under – Toilet Effluent Holding Tank UK

When operating temporary construction sites, outdoor events, or remote welfare facilities, connecting directly to a public sewer line is not always feasible. The Double Mains Toilet Waste Tank acts as a high – capacity, low – profile effluent holding system designed to slide directly beneath dual – block mains toilets or portable welfare cabins.

By storing blackwater and sanitary waste safely above ground, this tank eliminates the need for costly sub – surface excavation while ensuring full compliance with UK environmental regulations regarding waste containment.

Key Features & Construction Highlights

1. Low – Profile Under – Toilet Design

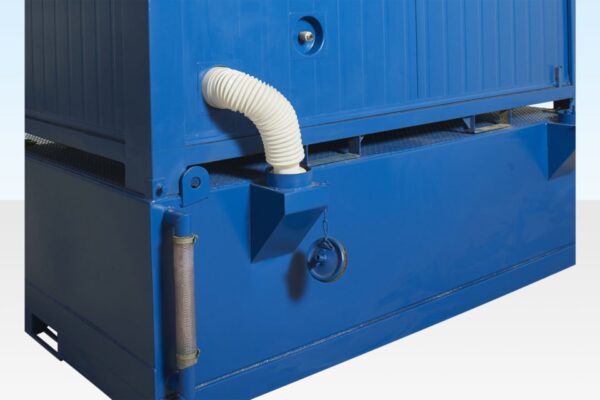

• Space – Saving Footprint: At just 450 mm high, the flat – top profile allows double mains toilet cabins to sit directly on top, utilizing gravity feed for waste disposal without requiring additional elevation frames.

• Heavy – Duty Structural Integrity: Engineered with reinforced internal bracing to support the weight of stacked toilet units and active foot traffic above.

2. Tanker – Ready Emptying & Sealed Inspection

• Standard Bauer Connectors: Fitted with quick – connect Bauer suction points, allowing municipal waste contractors and vacuum tankers to pump out effluent quickly without spillages.

• Odor – Sealed Access Hatches: Includes heavy – duty screw – down inspection lids to allow easy monitoring, cleaning, and sanitization while keeping odors fully contained.

3. Weatherproof & Corrosion – Resistant

• Built using high – density polyethylene (MDPE) or epoxy – coated steel, preventing degradation from harsh sanitary chemicals, UV exposure, and freezing winter temperatures.

Technical Specifications

Specification Feature	Metric Value	Imperial Value
Capacity	~2,270 Litres (Standard)	~500 Gallons
External Length	2,750 mm	9 ft 0 in
External Width	1,500 mm	4 ft 11 in
External Height / Profile	450 mm	1 ft 6 in (Low – profile under – toilet fit)
Dry Weight (Empty)	~180 kg – 220 kg (Polyethylene)	~396 lbs – 485 lbs
Construction Material	MDPE Polyethylene / Carbon Steel	UV – Stabilized & Chemical Resistant
Emptying Connection	4 – inch / 5 – inch Bauer suction points	Quick – release tanker coupling
Handling Features	Integrated forklift pockets & corner lifting eyes	Easy repositioning on site

Delivery, Crane Handling & Site Placement

1. Offloading & Position: Units are lightweight when empty and can be positioned using standard forklift tines or crane lifting straps via integrated corner eyes.

2. Transport Clearance: Shipped flatbed or via HIAB lorry across the UK.

3. Ground Preparation: Must be installed on a level, hardstanding surface (concrete pad, asphalt, or compacted gravel) to ensure even weight distribution when full.

Frequently Asked Questions

How often does a double mains toilet waste tank need to be emptied?

Emptying frequency depends on site usage. A standard 500 – gallon (2,270L) double mains toilet waste tank typically supports a team of 10 to 15 site workers for roughly 2 to 3 weeks before requiring a vacuum tanker pump – out.

Can a double toilet unit sit directly on top of this waste tank?

Yes. The low – profile flat top is structurally reinforced to support the static weight of standard double mains portable toilet cabins and welfare units.

How is the effluent tank emptied by waste contractors?

The tank features standard 4 – inch or 5 – inch Bauer quick – release suction couplings, allowing commercial vacuum tankers to connect and pump out the waste without moving the tank or toilet unit.
