20ft Platform Container (Flat Bed Container) – 28,000kg High Payload Capacity
When standard dry van containers or flat rack units fail to accommodate ultra – heavy, awkward, or top – heavy cargo, the 20ft Platform Shipping Container delivers unmatched load capability. Engineered without side walls, end frames, or top corner castings, this container consists purely of a high – tensile steel base frame designed to distribute structural weight evenly across the main floor beams.
With a massive 28 – ton (28,000 kg) payload capacity, this platform container is designed for heavy industry, construction, mining, aerospace, and marine sectors requiring concentrated load support.
High – Tensile Steel Construction & Lashing Systems
Built from corrosion – resistant Corten steel and supported by thick cross – members, the platform bed stands up to rigorous loading procedures, including direct loading by heavy forklifts and overhead cranes.
-
Integrated Lashing Points: Equipped with multiple high – capacity lashing rings welded into the side rails and floor structure. Each ring is rated for multi – ton tie – down capacity to secure machinery, steel coils, and timber using heavy – duty chains or webbing straps.
-

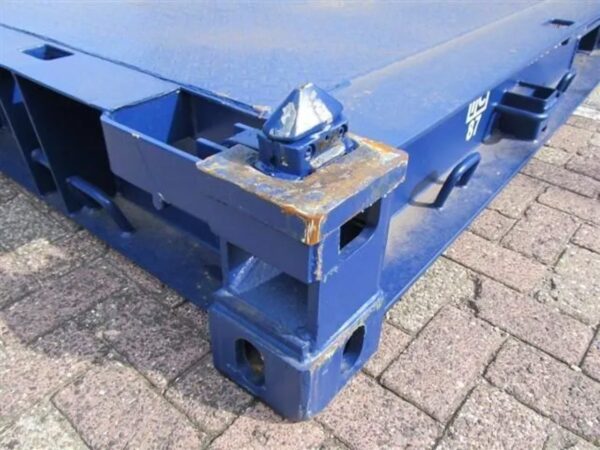

Reinforced Corner Castings: Standard ISO corner castings on the base structure ensure full compatibility with container chassis, reach stackers, vessel twist – locks, and rail cars.
-
Heavy – Duty Flooring: Options include thick marine – grade hard – wood planking or anti – slip steel checker plate flooring designed to handle tracked or wheeled vehicles.
Key Technical Specifications & Dimensions
| Feature / Metric | Imperial Standard | Metric Standard |
| External Length | 20 ft 0 in | 6,058 mm |
| External Width | 8 ft 0 in | 2,438 mm |
| Platform Height / Profile | Approx. 1 ft 0 in | Approx. 305 mm |
| Internal Floor Length | 19 ft 4 in | 5,900 mm |
| Internal Floor Width | 7 ft 10 in | 2,400 mm |
| Tare Weight (Approx.) | 6,060 lbs | 2,750 kg |
| Max Payload Capacity | 61,730 lbs | 28,000 kg (28 Tons) |
| Max Gross Weight (MGW) | 67,790 lbs | 30,750 kg |
| Floor Material | Marine – Grade Plywood / Steel Option | Marine – Grade Plywood / Steel Option |
| Lashing Points | 12 to 16 Heavy – Duty Recessed Rings | Tested to 5,000 kg per ring |
| Certification | CSC Plate / ISO Standard 1496 | ISO 6346 / UIC |
Versatile Transport & On – Site Storage Uses
Platform containers provide maximum loading flexibility. Without vertical obstructions, cargo can be side – loaded using forklifts or top – loaded using overhead gantry cranes.
Common load profiles for the 28 – ton 20ft platform container include:
-
Heavy plant machinery, excavators, and industrial engines.
-
Structural steel girders, concrete pillars, and construction materials.
-
Large generators, transformers, and industrial boilers.
-
Pipes, tubing, and oversized cable reels.
-
Breakbulk and project cargo that exceeds standard container profiles.
