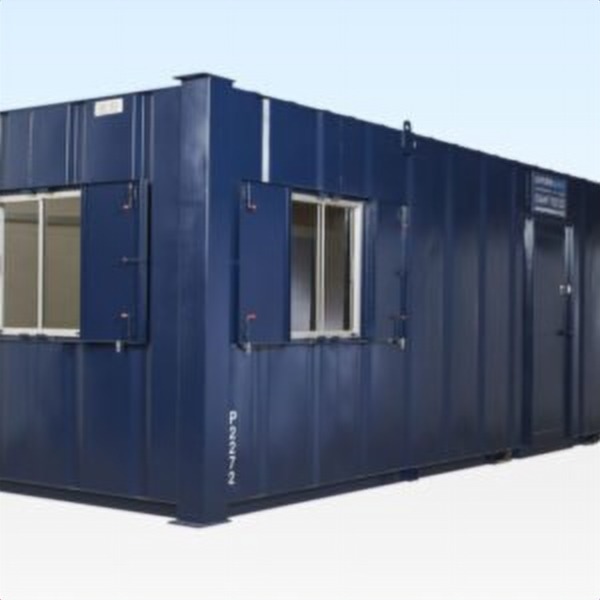

20ft Steel Office Store Cabin – Anti – Vandal Site Accommodation UK
Managing space on a busy UK construction site, industrial yard, or agricultural property requires flexible infrastructure. The 20ft x 8ft Steel Office/Store Cabin solves space constraints by providing two distinct functional areas under a single roof: a clean, insulated site office for administrative work and a secure steel store for high – value tools, machinery, and materials.
Built using high – grade corrugated steel walls and steel box – section framing, this unit offers full weather protection and anti – vandal security, making it suitable for long – term site deployments.
Key Functional Features & Customization Options of portable site office and storage unit
1. Anti – Vandal Security & Heavy – Duty Hardware
-
Steel Security Shutters: The office section features heavy – duty steel security window shutters that lock internally to prevent unauthorized access.
-
Integrated Lockboxes: The storage bay features original ISO double container doors fitted with a steel lockbox to shield padlocks from bolt cutters.
-
Multi – Point Locking Personnel Doors: Secure steel personnel doors give internal access to the office section without compromising site security.
2. Fully Insulated & Pre – Wired Office Environment
-
Thermal Lining: Walls and ceiling in the office area are insulated with mineral wool or foam board and finished with clean, wipe – clean washable wall panels to prevent condensation and retain heat.
-
Electrical Distribution: Supplied with a surface – mounted consumer unit, internal LED batten lights, multiple 13A double sockets, and a dedicated wall – mounted heater for cold UK winter months.
3. High – Capacity Secure Storage Bay
-
Heavy Payload Floor: The storage area features 28mm marine – grade plywood flooring capable of supporting heavy machinery, tool racks, and industrial supplies.
-
Partition Options: Dividers can be solid steel for total isolation or fitted with an internal connecting door for seamless access between the office and storage sections.
Technical & Dimensional Specifications
| Feature / Specification | Office Partition Area | Storage Partition Area | Combined External Dimensions |
| Length | ~10 ft 0 in (3.05 m)* | ~10 ft 0 in (3.05 m)* | 20 ft 0 in (6.06 m) |
| Width | 7 ft 8 in (2.34 m) | 7 ft 8 in (2.34 m) | 8 ft 0 in (2.44 m) |
| Height | 7 ft 10 in (2.39 m) | 7 ft 10 in (2.39 m) | 8 ft 6 in (2.59 m) |
| Access Door | Steel personnel door with anti – vandal lock | Double cargo doors with heavy – duty lockbox | – |
| Windows | 1x Sliding window with steel security shutter | N/A (Solid steel walls for maximum security) | – |
| Internal Finish | Wipe – clean wall lining, insulation, floor vinyl | Original steel corrugated finish, ply floor | – |
| Electrical Package | Consumer unit, LED lighting, 2x double sockets | LED batten light, master isolation switch | 32A External Commando Hookup |
Delivery, Site Setup & Crane Requirements for anti vandal site office container
Positioning a 20ft split office store container requires standard site preparation:
-
HIAB Delivery Vehicle: Delivered via a standard HIAB crane truck for direct placement onto your designated site pad.
-
Access Requirements: Requires a minimum of 50 ft (15.2 m) straight – line clearance for truck access and crane outrigger positioning.
-
Site Foundation: Must be placed on four level corner supports – such as concrete pads, railway sleepers, or level hardstanding – to ensure doors align smoothly.
