The 20ft 4+1 Steel Toilet Block Cabin (20ft x 9ft) offers a high – capacity, robust sanitation solution for demanding UK sites. Designed to accommodate high daily footfall, this 20ft portable toilet container provides individual privacy, ease of cleaning, and maximum security against vandalism and severe weather conditions.
Built from thick – gauge steel with reinforced steel doors and high – security locks, this mobile toilet unit keeps your site fully compliant with HSE (Health and Safety Executive) welfare at work requirements.
Key Functional Features & Customization Options for mains connected toilet container
1. Efficient 4+1 Interior Layout
-

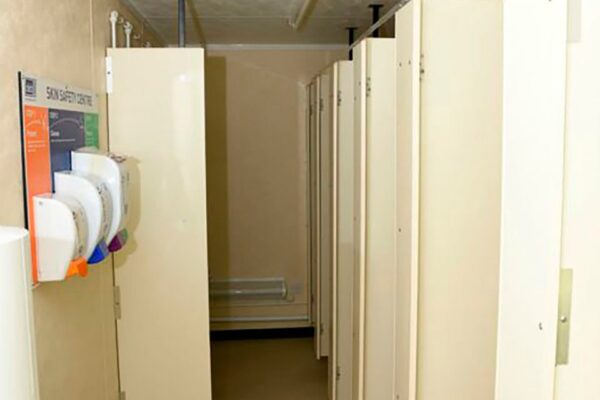

4 Private Cubicles: Each equipped with a heavy – duty lockable steel door, ceramic toilet pan, toilet roll holder, and coat hook.
-

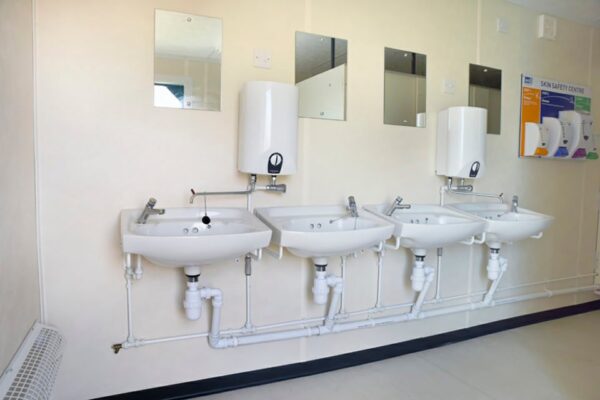

Separate Wash Station: Dedicated area featuring stainless steel or ceramic wash basins, instant electric hand warmers, soap dispensers, and wall – mounted mirrors.
2. Anti – Vandal Steel Construction & Security
-
Corrugated Steel Shell: Premium welded steel construction coated in a high – durability marine paint finish (choice of standard RAL colors).
-
Secure Access Points: Anti – vandal high – security steel doors equipped with multi – point locking systems and anti – pry frame lips prevent unauthorized access during off – hours.
3. Low – Maintenance, Hygienic Interior Finish
-
Wipe – Clean Surfaces: Interior walls lined with smooth, washable PVC cladding for rapid cleaning and sanitization between shifts or events.
-
Hygienic Anti – Slip Flooring: Sealed – edge vinyl flooring prevents water ingress beneath the floorboards and allows easy hosing down.
Technical & Specification Summary of anti vandal toilet cabin uk
| Feature / Specification | Outer Unit Dimensions | Internal Cubicle Setup | Technical & Electrical Data |
| Length | 20 ft 0 in (6.09 m) | Layout: 4x Independent Lockable Cubicles | Power Hookup: 32A Single – Phase Commando Plug |
| Width | 9 ft 0 in (2.74 m) | Urinal / Wash Bay: 1x Multi – basin & urinal area | Lighting: Anti – corrosive LED Batten Lights |
| Height | 8 ft 6 in (2.59 m) | Sanitary Ware: Full ceramic WC pans & wash basins | Water Heating: Instantaneous electric hand water heaters |
| Structure | All – steel anti – vandal frame with corrugated steel side panels | Floor: Non – slip, heavy – duty vinyl flooring with sealed edges | Drainage: Standard 110mm soil pipe outlets |
| Security Access | Heavy – duty steel doors with 10 – point anti – vandal locking systems | Ventilation: High – level louvered vents & extractors | Plumbing: Pre – plumbed copper/MDPE internal distribution |
