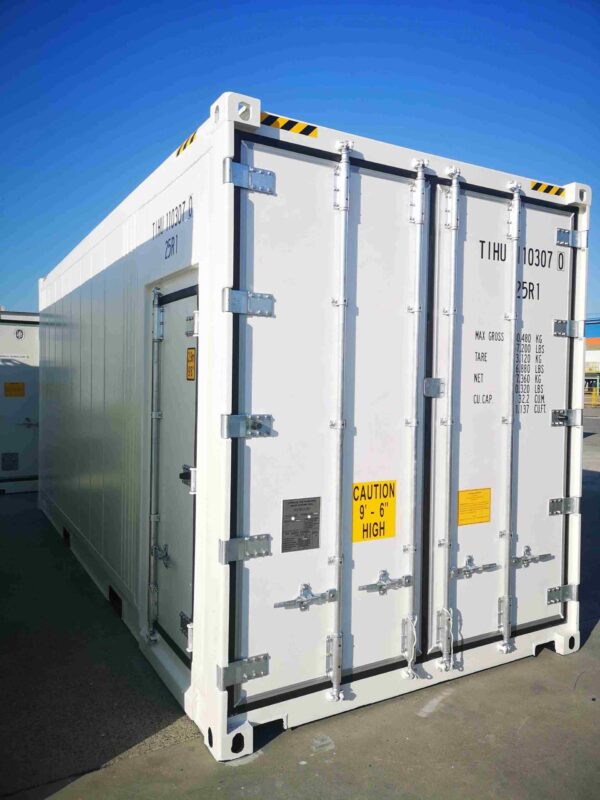

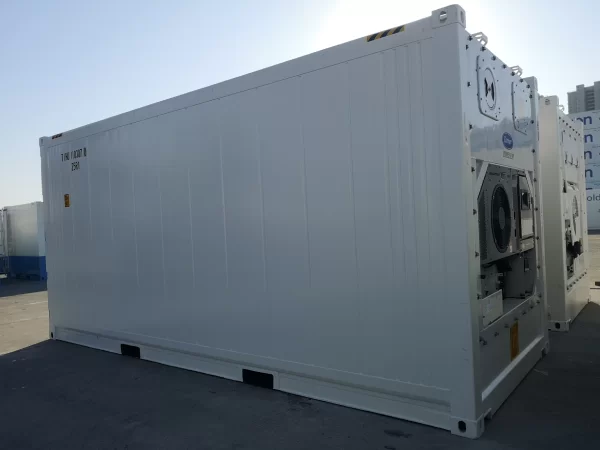

Used 20ft High Cube Reefer Container with Side PA Door (Single Phase)

20ft High Cube Reefer Container with PA Door – Single Phase

The 20ft High Cube Refrigerated Container with Side PA (Personnel Access) Door is built for businesses that need reliable, walk – in cold storage without constantly opening the main cargo doors. The dedicated side PA door lets staff access the unit quickly for stock checks, loading small items, or routine access – protecting the internal temperature and reducing energy loss compared to opening the full – width doors.

Running on a single – phase (230V) power supply, this unit is easier to connect on sites that don’t have three – phase electrics available, making it a practical option for smaller food businesses, farms, retail units, and pharmaceutical storage where a full industrial supply isn’t installed.

Key Features

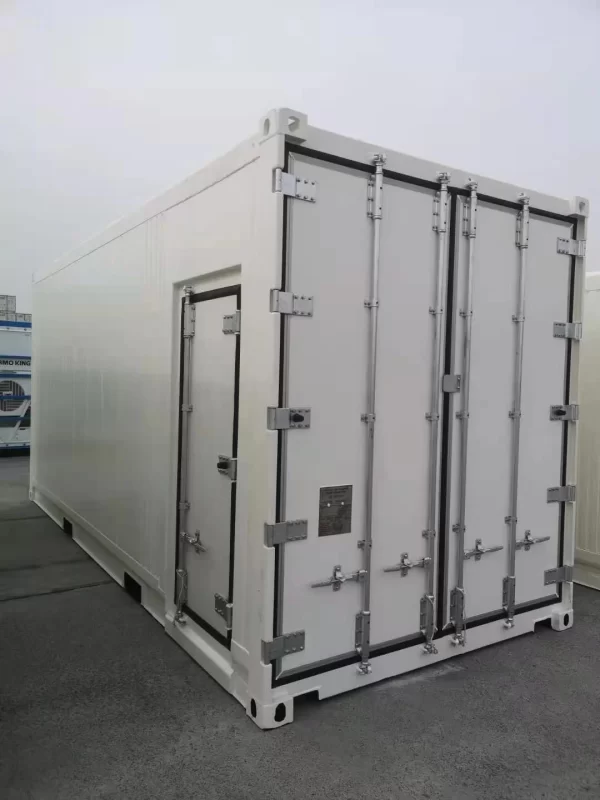

– Side PA (Personnel Access) door – single locking bar for quick, low – impact entry that limits temperature fluctuation
– High Cube design – 9’6″ external height for extra internal storage volume
– Single – phase power supply – 230V, suited to standard site or commercial electrics
– Insulated Corten steel construction – weatherproof and durable
– Food – grade interior panels – suitable for food, pharmaceutical, and chilled/frozen storage

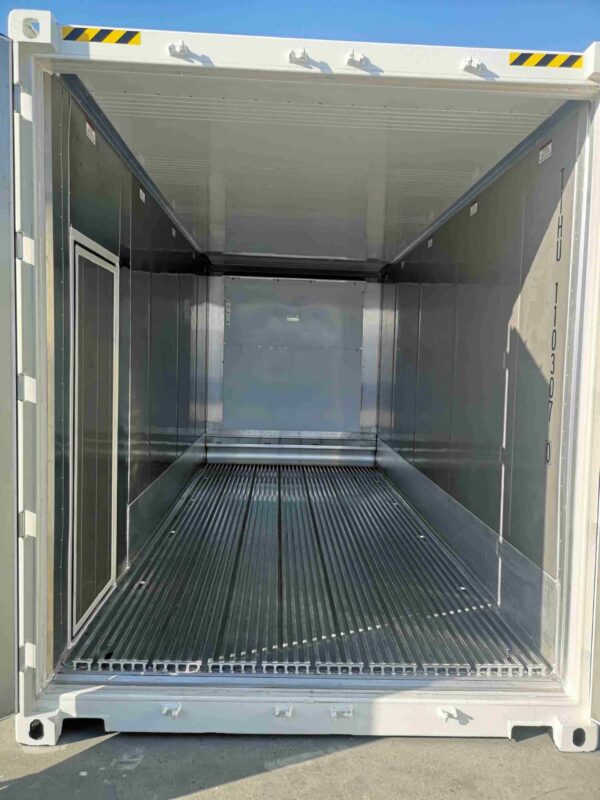

– Marine – grade T – bar flooring – supports airflow around stored goods and forklift loading
– Rubber – sealed doors – maintains internal temperature and prevents contamination
– Standard reefer features – corner castings, forklift pockets, lashing rings, lockable doors

Technical Specifications

| Measurement | Approx. Size |

| External Length | 6.06 m (20 ft) |
| External Width | 2.44 m (8 ft) |
| External Height | 2.90 m (9 ft 6 in) |
| Internal Length | ~5.90 m (19 ft 4 in) |
| Internal Width | ~2.29 m (7 ft 6 in) |
| Internal Height | ~2.69 m (8 ft 10 in) |
| Approx. Cubic Capacity | ~32 m³ |
| Power Supply | Single Phase, 230V |
| Indicative Temperature Range | Approx. – 25°C to +25°C (confirm with our team based on unit and phase rating) |
| Flooring | Marine – grade T – bar (aluminium) |
| PA Door Locking | Single locking bar |
| Main Door Locking | Multi – bar, lockable |

Reefer units lose some internal volume to insulation compared with dry containers of the same external size – dimensions above are indicative and should be confirmed for your specific unit before ordering, particularly the achievable temperature range, which varies between single – phase and three – phase machines.

Common Uses

– Cold storage for food and beverage businesses
– Pharmaceutical and medical supply storage
– Farm and agricultural chilled storage
– Temporary or supplementary cold storage during peak season
– Site – based frozen/chilled storage where three – phase power isn’t available

Why Choose a Single – Phase Reefer Container?

Single – phase units are typically easier and cheaper to connect than three – phase machines, since most Netherlands commercial and domestic sites already have single – phase electrics installed. This makes them a practical choice for smaller operations that don’t want the cost of a new three – phase supply, while still providing dependable temperature control for most chilled and frozen storage needs.

Delivery Across the Netherlands

Delivered nationwide via flatbed or tilt – bed vehicle. Before ordering, please confirm:

– Suitable vehicle access for a 20ft container delivery
– A level, firm base for the unit once sited
– Access to a single – phase power connection near the delivery point

Get a free delivery quote

Frequently Asked Questions

What does “PA door” mean on a refrigerated container?
PA stands for Personnel Access. It’s a smaller side door built into a reefer container specifically so staff can enter without opening the full – width main cargo doors, helping maintain a stable internal temperature.

Is a single – phase reefer as powerful as a three – phase unit?
Single – phase units are generally suited to standard chilled/frozen storage but may have a narrower achievable temperature range or slower pull – down time than three – phase machines. Speak to our team about your required temperature range before ordering.

Can this container be used for food storage?
Yes. It’s fitted with food – grade interior panels suitable for chilled and frozen food storage, subject to your own food safety compliance requirements.

Does this container need three – phase power?
No – this unit runs on a standard single – phase (230V) supply, making it easier to install on sites without three – phase electrics.
